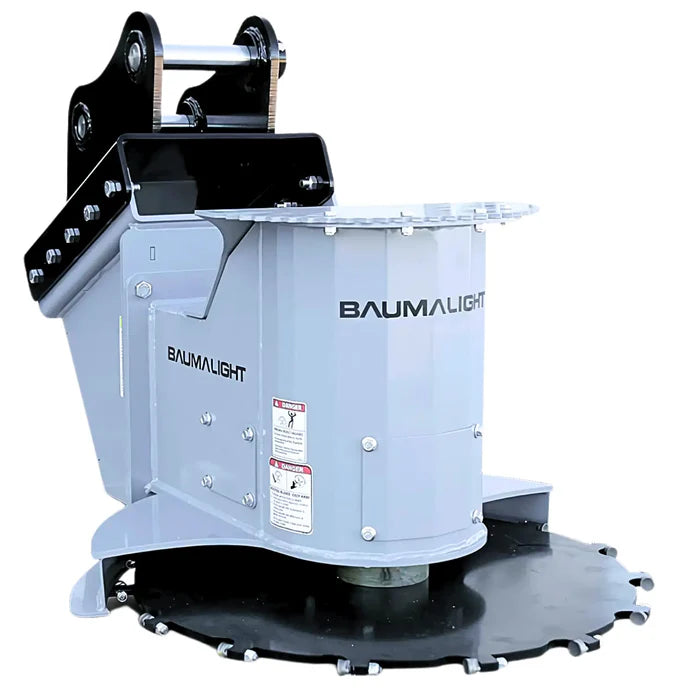

Cut and trim with precision using the DXM530 hydraulic tree saw for excavators. Features include a 90° manual rotating cutting head for versatile angles, AR400 steel blade for durability, and replaceable high-speed carbide teeth. Built tough with heavy-duty construction, internal hose routing, and bolt-on adaptors, this tree saw holds it's own on landscaping and forestry worksites enabling less downtime and more productivity.
| Adaptor |
Bolt-on |
Bolt-on |
Bolt-on |
Bolt-on |
| Maximum Carrier Ton |
12 |
12 |
22 |
22 |
| Minimum Carrier Ton |
4 |
4 |
10 |
10 |
| Blade Angle |
180° |
180° |
360° |
Horizontal |
| Rotation |
Manual |
Actuator |
Actuator |
Fixed |
| Actuator |
- |
Helical |
Slew Drive |
- |
| GPM |
10-40 |
10-45 |
25-60 |
25-60 |
| PSI |
5,000 |
5,000 |
5,000 |
5,000 |
| Electrical AUX |
Not required |
2 ON/OFF pins & G |
2 ON/OFF pins & G |
Not required |
| Hydraulic Hose |
Not Supplied |
Not Supplied |
Not Supplied |
Not Supplied |
| Hydraulic Couplers |
Not Supplied |
Not Supplied |
Not Supplied |
Not Supplied |
| Motor Type |
Bend Axis Piston |
Bend Axis Piston |
Bend Axis Piston |
Bend Axis Piston |
| Motor cc |
47 |
47 |
108 |
108 |
| Motor Option |
T530 |
T530 |
T590 |
T590 |
| Blade Diameter |
30" |
30" |
52" |
52" |
| Max Cut |
10" |
10" |
20" |
20" |
| Blade Material |
1/2" AR400 Blade |
1/2" AR400 Blade |
3/4" Steel Blade |
3/4" Steel Blade |
| Cut Thickness |
3/4" |
3/4" |
1-5/8" |
1-5/8" |
| Tooth Part number |
H3000 |
H3000 |
B8000 |
B8000 |
| Type of Teeth |
High Speed Teeth |
High Speed Teeth |
Beaver |
Beaver |
| No. of Edges per Tooth |
3 |
3 |
4 |
4 |
| Number of Teeth |
12 |
12 |
18 |
18 |
| Unit Shipping Weight |
652 lbs |
620 lbs |
2380 lbs |
1808 lbs |
